Description

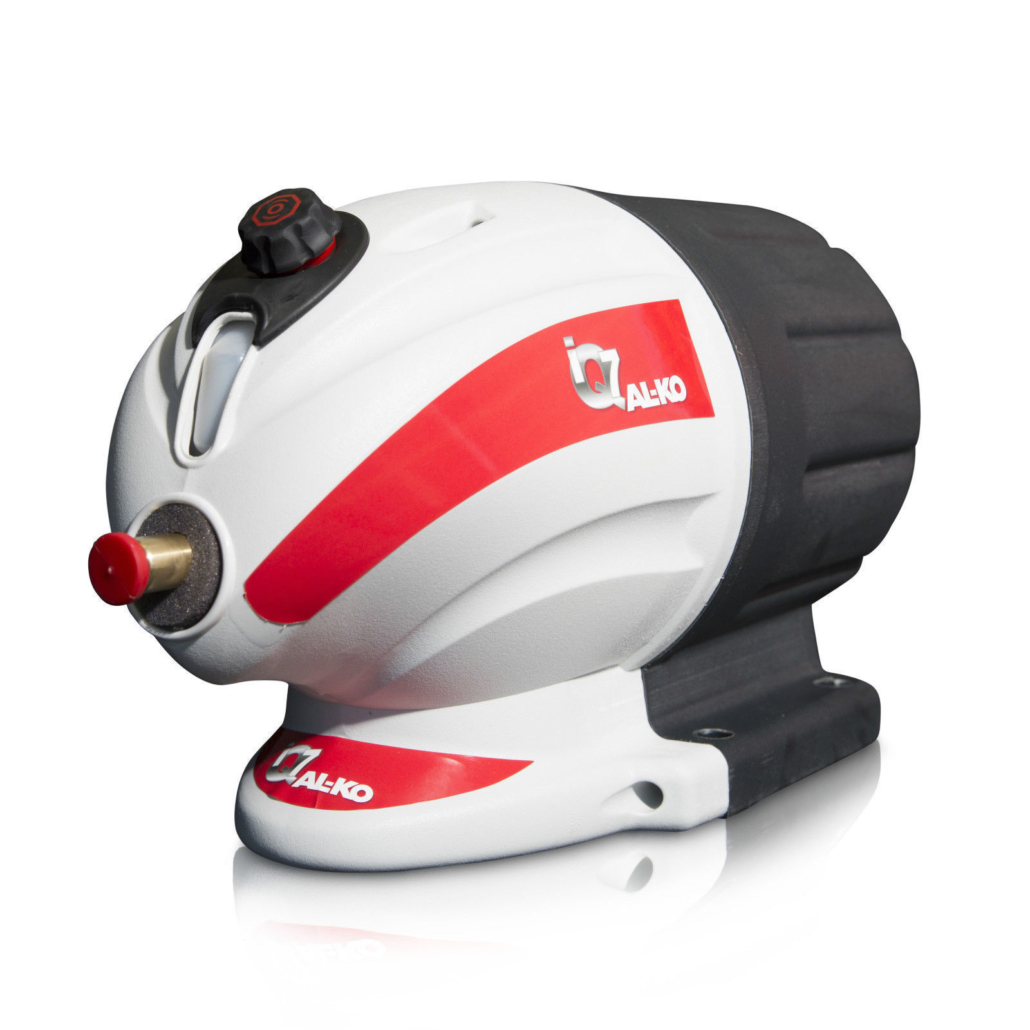

The AL-KO iQ7 Xtreme is the latest in power assisted braking, designed to significantly improve stopping performance and safety for trailers with hydraulic brakes, especially large boat trailers.
It allows immediate brake application the instant it is required. And iQ7 Xtreme includes inbuilt breakaway technology to stop your trailer if it becomes detached from the tow vehicle. No other parts are required.
Meet your legal requirements
In addition AL-KO iQ7 Xtreme enables you to meet the legal requirement that all trailers with a loaded weight exceeding two tonnes (2.5 tonnes in New Zealand) must incorporate power assisted brake application.
Until recently the most popular solution was to fit a vacuum or compressed air system to the tow vehicle, but not only is this very expensive it often also means that the warranty of the tow vehicle is voided.
Fitting the AL-KO iQ7 Xtreme system allows the legal use of hydraulic disc brakes for towed vehicles and trailers over 2 tonne in Australia and 2.5 tonne in New Zealand, and also provides superior stopping performance.
The bottom line is you’ll enjoy superior safety and peace of mind while knowing AL-KO iQ7 Xtreme has been designed and manufactured in Australia for Australian conditions, backed by AL-KO’s global expertise in towing safety.

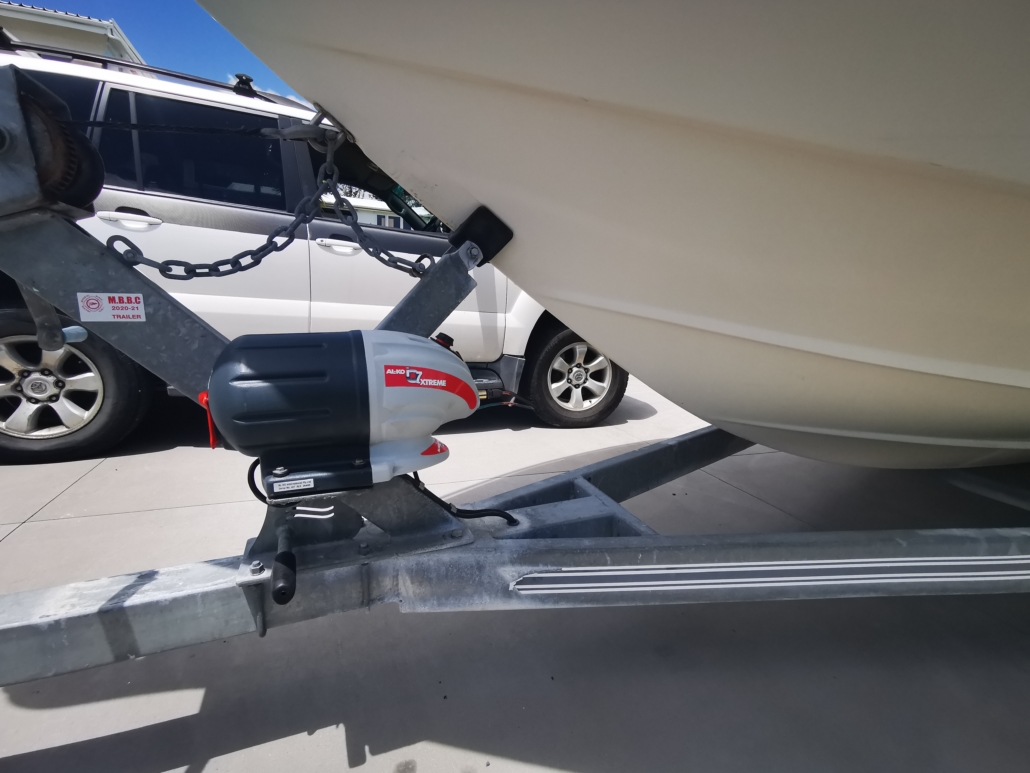

- Suits caravans and boat trailers fitted with hydraulic disc brakes
- Drum Brakes
- If drum brakes are being used, a residual line pressure valve (obtain from a brake specialist) must be installed in the hydraulic line. This must be located BEFORE any split in the hydraulic line immediately after or as close as practical to the master cylinder port.
AL-KO has addressed this, not only through its advanced XTREME electronic controller but, by utilising a compressed air reservoir to provide instant activation of the hydraulic master cylinder. This has resulted in an unparalleled response time.
Only AL-KO iQ7 Xtreme stores compressed air within a pressure chamber, allowing immediate brake application the instant it is required.
Maximum hydraulic pressure is 6.9 mpa (1000psi) and fluid displacement of 21cc. Check that the pressure available is adequate for the brakes being used and the number of brakes does not exceed the available fluid displacement.
The ultimate in reliability
AL-KO iQ7 Xtreme has been equipped with the latest superior computer processor circuit technology for maximum reliability. AL-KO has also completed over 220,000 cycle tests on iQ7 Xtreme.
This level of testing simulates the equivalent of setting off on an average of 42 trips per year over 10 years, without iQ7 Xtreme experiencing any problems. This re-enforces the quality and reliability of the technology. To complete the offer of complete peace of mind, AL-KO provides a market leading 3 year warranty (When installed by an Authorised AL-KO iQ7 Xtreme Installer).
- Maximum output pressure 1000 psi
- Response time 0 – 1000 psi 0.29 sec
- Weight 6.5kg
- Height 255mm
- Length 350mm
- Width 185mm
- Control type – EVO brake controller
